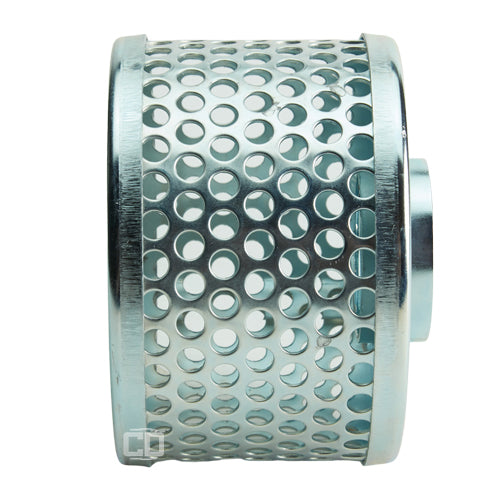

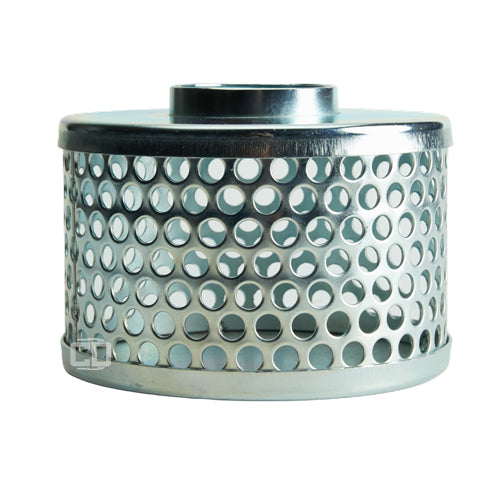

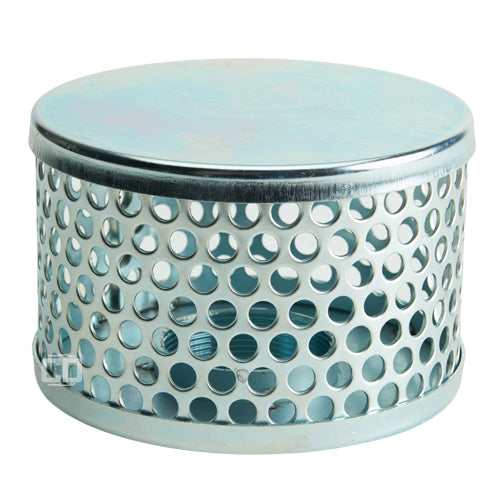

Steel 2" NPSH Barrel Strainer
Stock Level: 10 or more
Product Status: In Stock
Shipping Cost: Free on orders over $100
Shipping Transit Time: 2 to 5 Business Days
Eligible for Express Shipping: Yes
Stock Level Updated: Sep 7, 2024
Item Number: SBS2P
Weight: 1.95 lb
Couldn't load pickup availability
- Material - Zinc Steel
- Threads - NPSH
- Connection - This strainer will only thread onto a NPT or NPSH hose
- Size - 2 inches

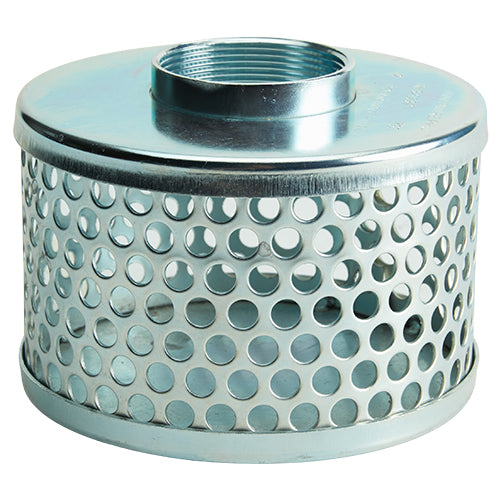

![Steel 2" NPSH Barrel Strainer](http://camlockdirect.com/cdn/shop/files/86620.jpg?v=1692896699&width=1445)
Collapsible content
Description
Connections
- The female threaded side of this strainer will only connect to a male suction hose that is National Pipe Straight Hose (NPSH) or National Pipe Tapered (NPT).
Specifications
Help Me Connect
NPT - National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
NPSH - National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.
- The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
- The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
