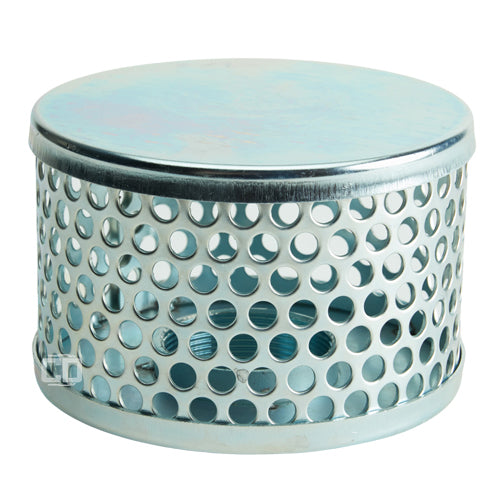

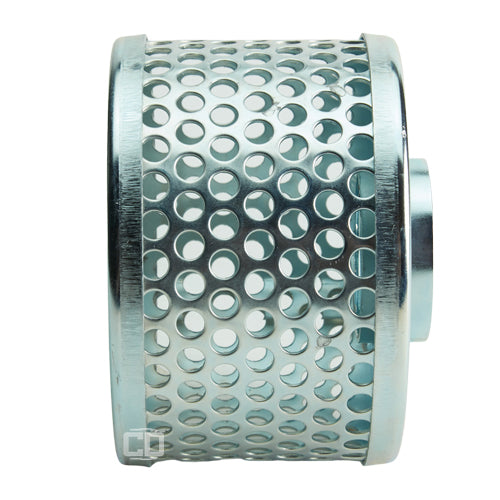

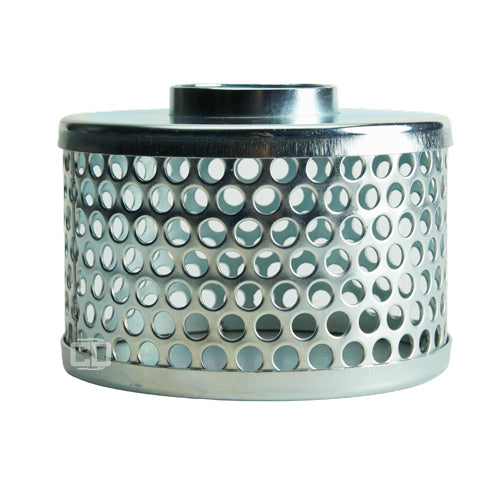

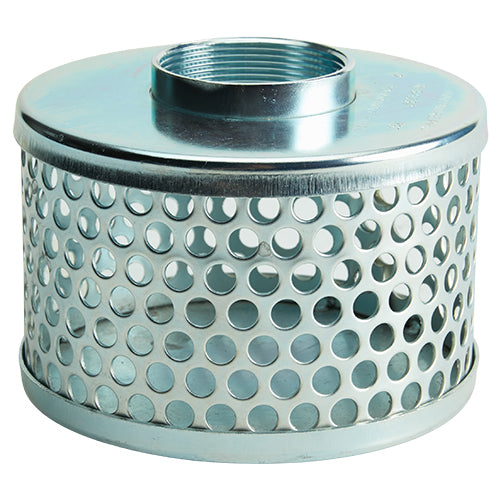

Steel 1 1/2" NPSH Barrel Strainer

Skip to product information
1 of 1
Regular price Price: $36.74
Regular price $0.00 Sale price $36.74
Sale Sold out

Stock Level: 9

Product Status: Limited Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Dec 9, 2024


Item Number: SBS15P
Weight: 2.02 lb
  • Material - Zinc Steel
  • Threads - NPSH
  • Connection - This strainer will only thread onto a NPT or NPSH hose
  • Size - 1 1/2 inches
View full details

Collapsible content

Description

The most basic tools for the drafting task deserve a high performance design. Our Zinc steel strainer allows for a long lasting durable product that will get the job done effectively.

Connections

  • The female threaded side of this adapter will only connect to a male suction hose that is National Pipe Straight Hose (NPSH) or National Pipe Tapered (NPT), for example, PVC or metal pipe fitting

Help Me Connect

NPT - National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

NPSH - National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
