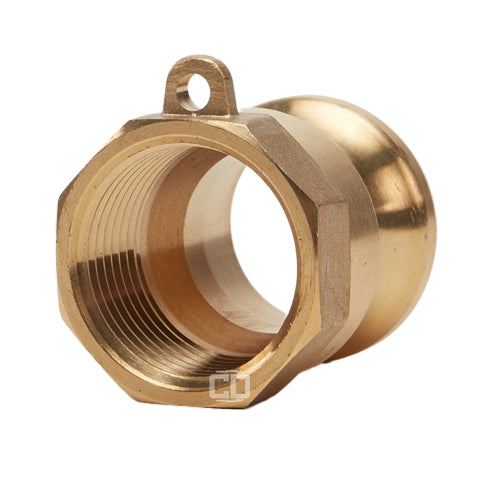

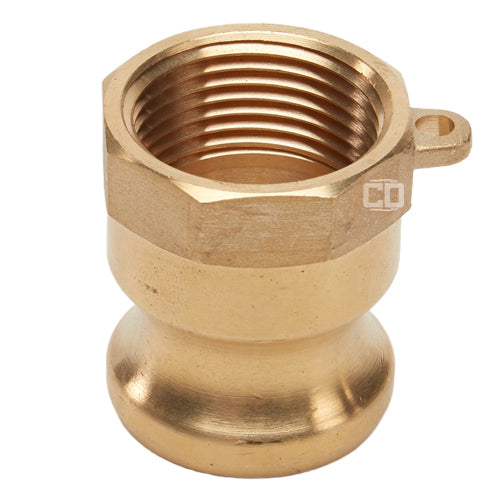

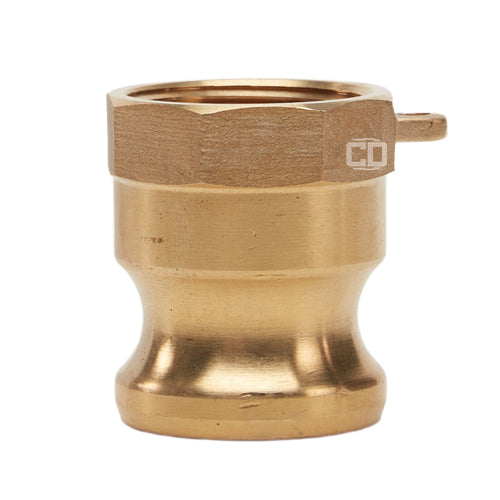

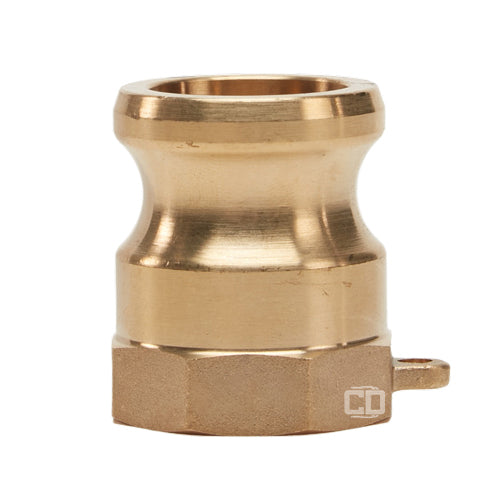

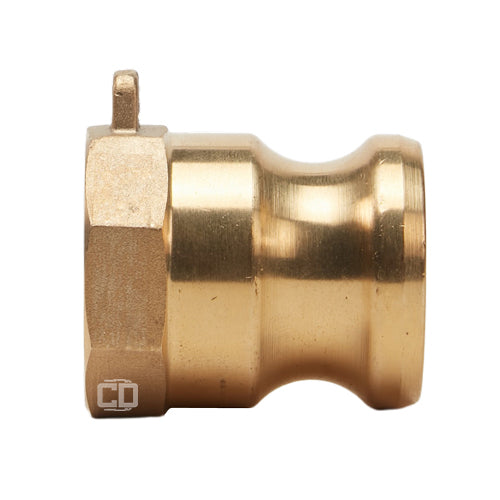

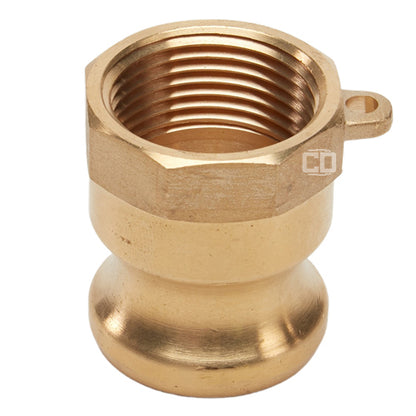

Brass 1 1/4" Male Camlock x 1 1/4" Female NPT (USA)

  • Brass 1 1/4" Male Camlock x 1 1/4" Female NPT (USA)
1 7
Price: $36.84
$0.00 $36.84
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Dec 26, 2024


Item Number: DB12M12FN
Weight: 0.57 lb
  • Made In USA
  • Body Material: Brass
  • Camlock (Cam & Groove) Size: 1 1/4 inch Male
  • Threaded Size: 1 1/4 inch Female NPT
  • Maximum Operating Pressure: 250 PSI
  • Type: "A" Quick Disconnect
View full details

Description

Type "A" Brass 1 1/4 inch male camlock (Cam & Groove) coupler to 1 1/4 inch female inch NPT threads.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The male side of this adapter will only connect to a 1 1/4 inch female camlock
  • The female threaded side of this adapter will only connect to a 1 1/4 inch male National Pipe Tapered (NPT) thread, for example, PVC or metal pipe fitting

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Wine
  • Food
  • Drugs
  • Reverse osmosis systems
  • Water treatment
  • Water transport
  • Irrigation
  • Waste / vacuum trucks
  • Fuel delivery
  • Grain movement
  • Hydraulic oil, coolants, gasoline and petroleum products
  • Bio-fuel
  • Salt water
  • Waste water
  • Chemical movement & storage
  • Sand
  • Grout
  • Cement
  • Varnish
  • Flour
  • Pellets

Specifications

Male Camlock Dimensions

  • Size: 1 1/4 inches (1.25)
  • Male Outside Diameter: 1 3/4 inches (1.781)

Download Spec Sheet

Help Me Connect

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.



Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
